Catalyst for converting natural gas of stream at the first stage

Model No . PT-PC9
Product Specifications

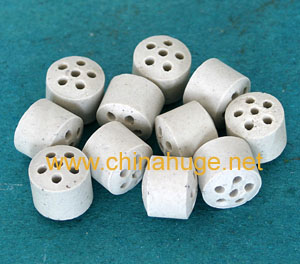

1. Grey porous cylinder
2. Pore Numbers: 3-7 pieces
3. Size: 14 ± 2 mm ( Diameter), 8 -16 mm ( Height)
4. Pore diameter: 3.5 ± 0.5mm
5. Bulk Density: 0.85 -1.15 Kg /L
6. Chemical Conponents: NiO: 14.5 % Min; SiO₂:0.20% Max; Fe₂O₃: 0.30% Max; CaO:5-10 %, Al₂O₃: 70-80%; K₂O+NaO: 0.30% Max
7. Loss on Ignition: 5% Max
8. Working pressure: 1.0Mpa to 5.0Mpa

Applied Area

This product is a agglomerate converting catalyst whose active component is nickel and carrier is alumina. It is mainly used in the steam converting equipment at the first stage which is for the gas mainly including methane, such as natural gas and gas from oil field.

Package : One paper drum loads 25kg products with one inner plastic bag.
