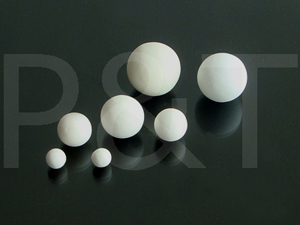

Grinding Ceramic ball
As grinding media, this product is widely used in ceramic industry, cement industry, paint industry , color industry,chemical industry, mining industry etc. The advantages are: high hardness, good toughness, high density, good erosion resistance etc
Specifications
| Items |
A70 |
A80 |
A92 |
A95 |
Al2O3 % (typical) |
68 |
80 |
92 |
95 |
Water adsorption % |
0.02 |
0.02 |
0.01 |
0.01 |
Wear loss % |
0.025 |
0.02 |
0.015 |
0.01 |
Density g/cm3 |
2.90-3.00 |
3.30-3.35 |
3.61 |
3.65 |
Hardness Mohs |
8.5 |
9 |
9 |
9 |
Crushing strength Mpa |
1700 |
1800 |
2100 |
2250 |
Color |
Yellow |
White |
white |
white |
Remarks: the alumina content may have +1% fluctuating |
Size available: 1mm to 70mm
Forming methods: size from 1-30 are rolling shaped, 40-70mm are isostatic pressed

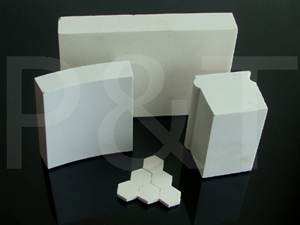

Ceramic lining brick
The alumina lining bricks are the lining in the ball mill of ceramic industry, cement industry, paint industry, color industry, chemical industry, medicine industry and coating industry. Using this liner will effectively improve grinding efficiency, reduce grinding cost, and it is considered to be the best choice for ball mill lining.
Name |
Long (mm) |
Width(w1,mm) |
Width (w2,mm) |
Height (mm) |
40-90mm lining brick |
Straight brick |
150+2 |
50+1 |
50+1 |
40/50/60/70/77/90+1 |
Trapezoidal brick |
150+2 |
50+1 |
45+1 |
40/50/60/70/77/90+1 |
Half straight brick |
75+1 |
50+1 |
50+1 |
40/50/60/70/77/90+1 |
Half trapezoidal brick |
75+1 |
50+1 |
45+1 |
40/50/60/70/77/90+1 |
Special lining brick |
Flake brick |
150+2 |
25+1 |
22.5+1 |
40/50/60/70/77/90+1 |
80x50x55 |
55+2 |
50+1 |
50+1 |
80+1 |
110mm lining brick |
75+2 |
45+1 |
41+1 |
110+2 |
110mm half lining brick |
37.5+2 |
45+1 |
41+1 |
110+1 |
Brick for inert & outlet of miller |
Tailor made |
|
